ARTS Energy Batteries

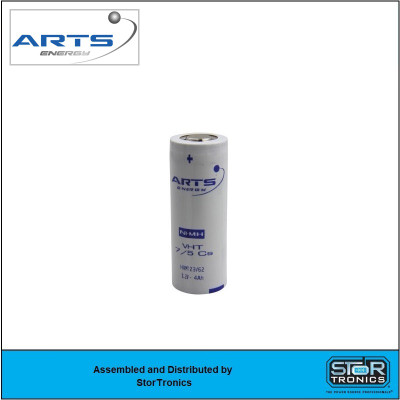

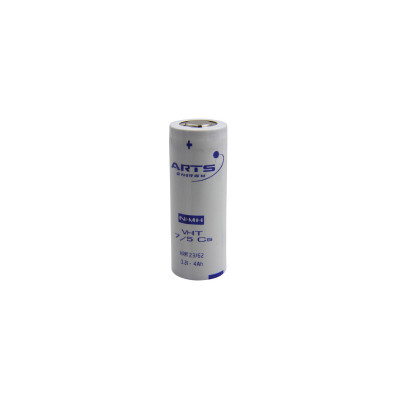

VHT 7/5 Cs - 1.2 Volt, 4200 mAh, Arts Energy NIMH Low Button Top Battery - 792076AE

(No reviews yet) Write a Review
SKU:
VHT-7/5CS-CFG
MPN:
792076AE
Minimum Purchase:
3 units
  • VHT 7/5 Cs - 1.2 Volt, 4200 mAh, Arts Energy NIMH Low Button Top Battery - 792076AE
  • VHT 7/5 Cs - 1.2 Volt, 4200 mAh, Arts Energy NIMH Low Button Top Battery - 792076AE
$16.70

Disclaimer

  • The pricing on our website is subject to change without notice.
  • Several manufacturers and suppliers are modifying pricing up to the point of shipment.
  • We apologize for this inconvenience, but unfortunately this is beyond the control of StorTronics.

Click here to check our current inventory

Distributor pricing, call (248) 912-1200

Description

VHT 7/5 Cs - 1.2 Volt, 4200 mAh, Arts Energy NIMH Low Button Top Battery

Arts P/N 792076AE

Specifications

VHT 7/5 Cs Specifications

Electrical characteristics

Nominal Voltage

1.2 Volts

Typical capacity *

4200 mAh

IEC minimum capacity *

4000 mAh

IEC designation

HRMT 23/62

Impedance at 1000 Hz (mΩ)

20

* Charge 16 h at C/10, discharge at C/5

Dimensions

Diameter

22.0 (mm) ± 0.05

Height (mm)

60.0 (mm) ± 0.3

Top projection

0.8 (mm) ± 0.2

Top flat area diameter

9.0 (mm) (min)

Weight

74 (g)

Dimensions are given for bare cells

Charge Conditions Rate

Time (h)

Temp. (°C)

Charge current (mA)

Fast *

3

-40 to +85

1330

* Charge termination required

Maximum discharge current

Continuous (A) at + 20°C

15

Peak (A) at + 20°C*

130

* Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell.
Below 0°C, a cut-off voltage in charge is required (Consult ARTS Energy)



Features

Arts Energy VHT 7/5 Cs
High Temperature Series

ARTS Energy’s VHT High Temperature Ni-MH series have been designed for professional applications requiring a battery with an exceptional robustness.  It is designed to operate in very demanding environment (from - 40°C to + 85°C).

Applications

  • Private mobile radios
  • Personal care products
  • Professional electronic devices
  • Handheld terminals

Main Advantages

  • Super high capacity
  • Fast charge / Fast discharge
  • Extended cycle life
  • Improved storage ability
  • Environmentally preferred

Technology

  • Foam positive electrode
  • Metal-hydride negative electrode

Temperature range in discharge

0°C to + 40°C

Storage

Recommended: + 5°C to + 25°C
Relative humidity: 65 ± 5 %

Custom Assembly Information

Arts Energy VHT DL
High Temperature Series

The VHT D benefits from the latest technical improvements of ARTS Energy’s Ni-MH technology, and is designed to operate in very demanding environments (from - 40°C to + 85°C).  The VHT D can be fast charged with a maximum current of C/3, and offers an exceptional life duration.  The VHT D delivers a huge number of full or partial cycles: 2000 full cycles and even 5000 cycles with 50% DOD (Depth Of Discharge).

Customized Assemblies

To meet customers’ requirements, StorTronics provides custom-designed and standardized battery packs.

For your battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Secondary/Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
