Description

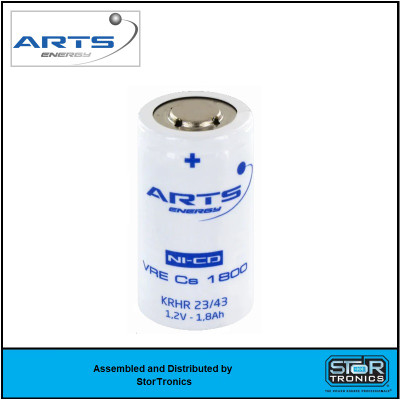

VRE Cs 1800 - 1.2 Volt, 1800 mAh, Arts Energy NICD Low Button Top Battery
Arts P/N - 791130AE / Saft PN - 417240-101

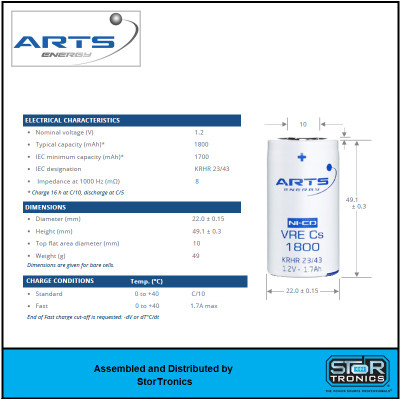

Specifications
|
VRE Cs 1800 Specifications |
|||
|
Electrical characteristics |
|||
|
Nominal Voltage |
1.2 Volts |
||
|
Typical capacity * |
1800 mAh |
||
|
IEC minimum capacity * |
1700 mAh |
||
|
IEC designation |
KRHR 23/43 |
||
|
Impedance at 1000 Hz (mΩ) |
5 |
||
|
* Charge 16 h at C/10, discharge at C/5 |
|||
|
Dimensions |
|||
|
Diameter |
22.0 (mm) +0.15 / -0.05 |
||
|
Height (mm) |
41.9 (mm) ± 0.3 |
||
|
Top projection |
0.8 (mm) ± 0.2 |
||
|
Top flat area diameter |
9.0 (mm) (min) |
||
|
Weight |
49 (g) |
||
|
Dimensions are given for bare cells |
|||
|
Charge Conditions Rate |
Time (h) |
Temp. (°C) |
Charge current (mA) |
|
Fast * |
~ 1 |
+10 to +45 |
up to 1700 |
|
Standard |
16 |
0 to +50 |
170 |
|
Trickle** |
45 to 80 |
||
|
* End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge |
|||
|
Maximum discharge current |
|||
|
Continuous (A) at + 20°C |
17 |
||
|
Peak (A) at + 20°C* |
130 |
||
|
* Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell |
|||
Features
Arts Energy VRE Cs 1800
Standard Series
Applications
- Power tools
- Radio controls
- Lawn and gardening equipment
- Home appliances
- Payment terminals
Main Advantages
- Cycling application
- Fast charge
- Extended cycle life
- Good charge retention
Technology
- Cycling application
- Fast charge
- Extended cycle life
- Good charge retention
Custom Assembly Information
Arts Energy VRE Cs 1800
Standard Series
ARTS Energy’s VRE standard Ni-Cd series are perfectly suited to cycling applications. It is designed for professional electronics and home appliances where an extended cycle life and a longer operating time are required.To meet customers’ requirements, StorTronics provides custom-designed and standardized battery packs.
