ARTS Energy Batteries

VRE DL 5500, 1.2 Volt, 5500 mAh Arts Energy NICD Low Button Top Battery - 791616AE / 417990-101

(No reviews yet) Write a Review
SKU:
VRE DL 5500
MPN:
791616AE

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 25 - 99 and pay only $15.63 each
Buy 100 - 249 and pay only $14.33 each
Buy 250 - 999 and pay only $13.22 each
Buy 1000 or above and pay only $12.28 each
On Sale
Now: $10.35
Was: $17.19

Disclaimer

  • The pricing on our website is subject to change without notice.
  • Several manufacturers and suppliers are modifying pricing up to the point of shipment.
  • We apologize for this inconvenience, but unfortunately this is beyond the control of StorTronics.

Click here to check our current inventory

Distributor pricing, call (248) 912-1200

Description

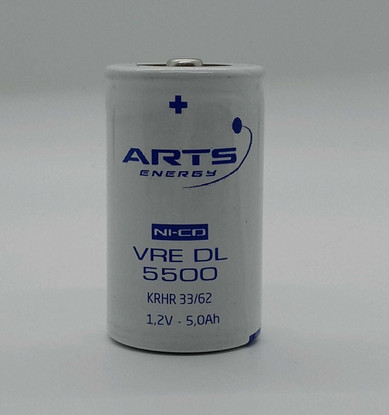

VRE DL 5500, 1.2 Volt, 5500 mAh Arts Energy NICD Low Button Top Battery

Arts P/N - 791616AE / Saft PN - 417990-101

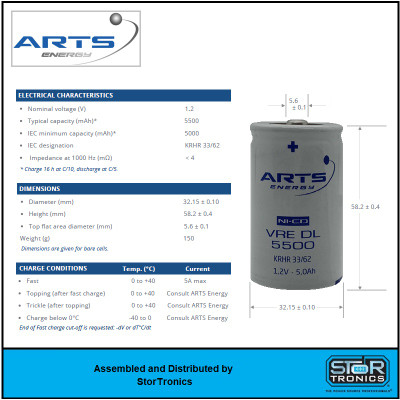

Specifications

VRE DL 5500 Specifications

Electrical characteristics

Nominal Voltage

1.2 Volts

Typical capacity *

5500 mAh

IEC minimum capacity *

5000 mAh

IEC designation

KRHR 33/62

Impedance at 1000 Hz (mΩ)

< 4

* Charge 16 h at C/10, discharge at C/5

Dimensions

Diameter

32.15 (mm) +0.10

Height (mm)

58.2 (mm) ± 0.4

Top projection

1.4 (mm) ± 0.2

Top flat area diameter

5.6 ± 0.1

Weight

150 (g)

Dimensions are given for bare cells

Charge Conditions Rate

Time (h)

Temp. (°C)

Charge current (mA)

Fast *

~ 1

+10 to +40

up to 5000

Standard

16

+5 to +50

500

Trickle**



150

* End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge

Maximum discharge current

Continuous (A) at + 20°C

50

Peak (A) at + 20°C*

150

* Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell



Features

Arts Energy VRE DL 5500
Standard Series

Applications

  • Electric bicycles, scooters & wheelchairs
  • Professional applications
  • Professional Lighting
  • Lawn and gardening tools
  • Vacuum cleaners

Main Advantages

  • Super high capacity
  • Fast charge
  • Good storage ability
  • Excellent cycling performance

Technology

  • Sintered positive electrode
  • Plastic bonded negative electrode
Temperature range in discharge
- 20°C to + 60°C

Storage
Recommended: + 5°C to + 25°C
Relative humidity: 65 ± 5 %



Custom Assembly Information

Arts Energy VRE DL 5500
Standard Series

ARTS Energy’s VRE standard Ni-Cd series are perfectly suited to cycling applications. It is designed for professional electronics and home appliances where an extended cycle life and a longer operating time are required.

Customized Assemblies

To meet customers’ requirements, StorTronics provides custom-designed and standardized battery packs.

For your battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Secondary/Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
