Description

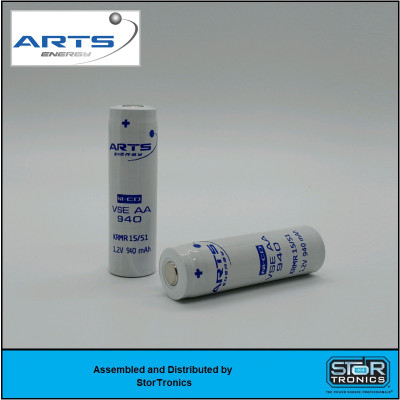

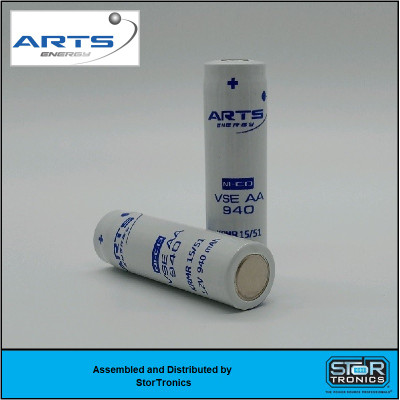

VSE AA, 1.2 Volt, 940mAh Arts Energy NICD Low Button Top Battery
Arts P/N - 791458AE / Saft PN - 416086-106
Specifications
|
VSE AA Specifications |
|||
|
Electrical characteristics |
|||
|
Nominal Voltage |
1.2 Volts |
||
|
Typical capacity * |
980 mAh |
||
|
IEC minimum capacity * |
940 mAh |
||
|
IEC designation |
KRMR 15/49 |
||
|
Impedance at 1000 Hz (mΩ) |
16 |
||
|
* Charge 16 h at C/10, discharge at C/5 |
|||
|
Dimensions |
|||
|
Diameter |
13.9 (mm) +0.10 |
||
|
Height (mm) |
48.9 (mm) ± 0.3 |
||
|
Top projection |
0.8 (mm) ± 0.2 |
||
|
Top flat area diameter |
4.0 ± 0.1 |
||
|
Weight |
22 (g) |
||
|
Dimensions are given for bare cells |
|||
|
Charge Conditions |
Temp. (°C) |
Current |
|
|
Fast |
0 to + 40 |
0,94A max |
|
|
Topping (after fast charge) |
0 to + 40 |
Consult ARTS Energy |
|
| Charge below 0°C | -40 to 0 |
Consult ARTS Energy |
|
|
End of charge cut-off is requested: -dV or dT°C/dt. |
|||
|
Discharge Conditions |
|
Temp. (°C) |
Current |
| 10 to + 60 | 2,9A max | ||
| -20 to + 60 | 1C max | ||
| -30 to + 60 | C/3 max | ||
| -40 to + 60 | C/5 max | ||
| Discharge Conditions | Cycling | Life duration | |
| Full cycles (100% DOD) | > 500 cycles | ||
Features
Arts Energy VSE AA
Standard Series
Applications
- Professional electronics
- Professional lighting equipment
Main Advantages
- Excellent cycling performance
- High power
- Extreme low temperatures (-40°C)
Technology
- Foam positive electrode
- Plastic bonded negative electrode
Custom Assembly Information
Arts Energy VSE AA
Standard Series
ARTS Energy’s VSE standard Ni-Cd series are perfectly suited to cycling applications. It is designed for professional electronics and home appliances where an extended cycle life and a longer operating time are required.
Customized Assemblies
To meet customers’ requirements, StorTronics provides custom-designed and standardized battery packs.
For your battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Secondary/Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
