Ultralife Batteries

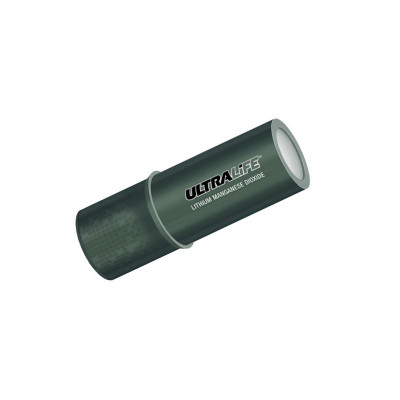

Ultralife UB2776, Saft BA-5368/U 12 Volt, 1Ah Lithium Primary (LiMnO2) Battery

(No reviews yet) Write a Review
SKU:
BA-5368/U
MPN:
UB2776
  • Ultralife UB2776, Saft BA-5368/U 12 Volt, 1Ah Lithium Primary (LiMnO2) Battery
  • Ultralife UB2776, Saft BA-5368/U 12 Volt, 1Ah Lithium Primary (LiMnO2) Battery
$84.83

Shipping will be calculated at checkout

Disclaimer

  • The pricing on our website is subject to change without notice.
  • Several manufacturers and suppliers are modifying pricing up to the point of shipment.
  • We apologize for this inconvenience, but unfortunately this is beyond the control of StorTronics.

Click here to check our current inventory

Distributor pricing, call (248) 912-1200

Description

Ultralife UB2776, Saft BA-5368/U Battery
  12 Volt, 1 Ah Lithium Primary (LiMnO2) Cell

Specifications


Specifications
Brand: Ultralife
MPN: UB2776
Voltage: 12 Volts
Capacity: 1000 mAh
Chemistry: Lithium Manganese Dioxide (LiMnO2)
Dimensions:
  Length 3.0"
  Diameter 1.06"
Technical Specifications
Voltage Range:   8.0 to 13.2 Volts
 Average Voltage: 12.0 Volts
Nominal Capacity: 1.0Ah @ 40mA to 8.0V @ 23°C
Max. Discharge:  320mA continuous
Pulse Capability: Up to 600mA | Varies according to pulse characteristics, temperature, cell history and the application.
Consult Ultralife.
Weight:  76.0g
Operating Temperature: -40°C to 72°C
Storage Temperature: -40°C to 95°C
Exterior/Housing: Plastic sleeve
Terminals/Connector: Nickel plated contacts

Safety:
  Material Safety Datasheet - MSDS018
  Safety Guide UBM-5135
Transportation
  Excepted from regulations for packages with gross mass of 2.5kg or less
    (see note below)
Export License
  ITAR (International Traffic in Arms Regulations) export license required to export from U.S.
Harmonized Tariff Code
  8506.50.0000
NSN
  6135-01-455-7947

Note
  A complete description of transportation regulations, lithium weights and transportation classifications
  is available on the Ultralife website.

Features

Features
 •  High energy density
 •  No voltage delay
 •  Wide operating temperature range
 •  Lightweight
 •  Up to 10-year shelf life
 •  Long operating life
 •  Cells are hermetically sealed Ni-plated steel cans
Applications
 •  Consumer telematics
 •  Commercial telematics
 •  Search & rescue devices
 •  Military Communications, detectors and imaging
 •  Medical devices
