Description

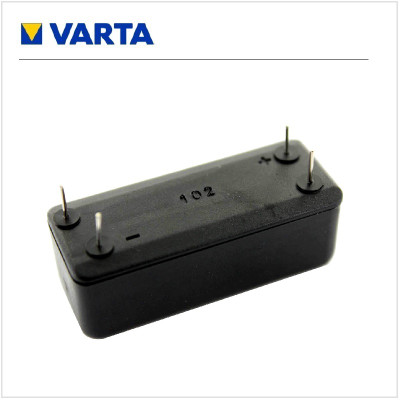

Varta 55615-703-012, 3.6 Volt, 150mAh NIMH Battery
Varta Mempac S-H - 55615-703-012 / NSN 6140-01-153-0392 NIMH Battery
Specifications
Varta Mempaq S-H Specifications
Brand: Varta
NSN: 6140-01-153-0392
Type: NiMH
Voltage: 3.6
Capacity: 180 mAh

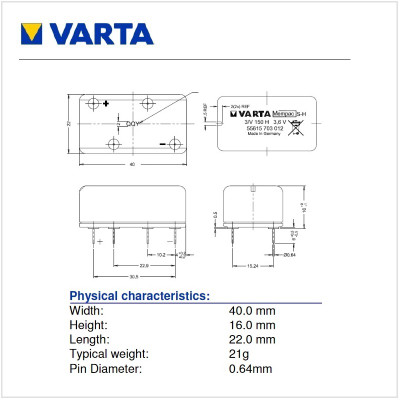

Size: 1.57" x 0.86" x 0.60"
Contacts: 4 Pin
Replaces
53010-703-012
53310-703-012
55611-703-012
55615-703-012
DS3GT
DS3SD
Features
System highlights of Ni-MH Button Cells – Robust Family – from VARTA Microbattery:
• Excellent overcharge capability due to patented GCE-Electrode
• Low self-discharge of 20% at RT after 1 year
• Flat and stable discharge voltage
• Long life – typical 500 full cycles
• Slim design
• Wide temperature range
- Storage: -40°C up to +65°C
- Discharge: -20°C up to +65°C
- Charge 0°C up to +65°C
Key features:
• Good recovery characteristics after long storage period and deep discharge
• Sealed rechargeable Ni-MH Button Cells from VARTA Microbattery can be operated in any position
• The cells complete the manufacturing process in a charged state
• Because of time and temperature depending self- discharge, the state of charge upon receipt can not be precisely defined.
• Before use, therefore, sealed Ni-MH cells should be recharged.
Main Applications:
• RTC-Backup
• Memory-Backup
Quality – Made in Germany
• Manufactured on highly automated lines
• Direct replacement for Ni-Cd
• No memory effect
• 0% lead, 0% mercury, and 0 % cadmium
• All cells have built in safety vent for security in abuse conditions
• UL recognition under file BBET2.MH13654
• ISO 9000 certified for design and manufacture of rechargeable mass type cells and batteries.
Conformity to requirements of ISO 9001
• VARTA Microbattery is a leader of Ni-MH Button Cell technology and received several ecological and industry awards are in line with ROHS (in accordance to EU directive 2002/95/EC).
They do not contain the hazardous substances Hg, Cd, Pb, Cr6+, PBBs, PBDEs, as in ROHS, with Cd <100 ppm and the others >1000 ppm.
