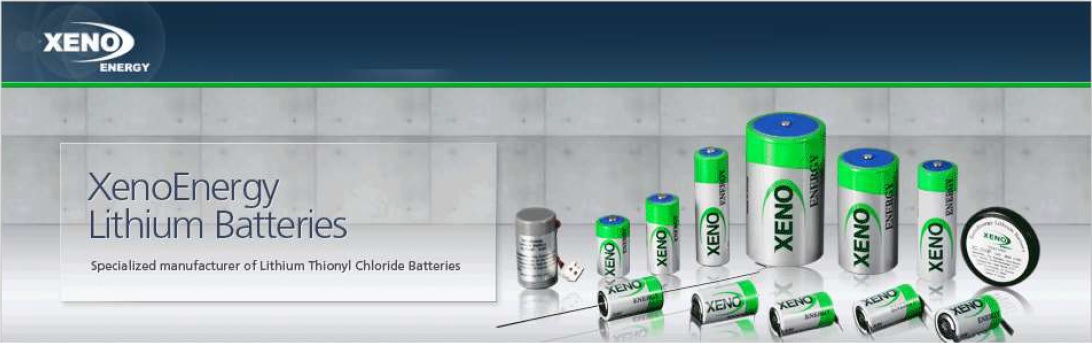

Xeno Energy


To place an order for XENO Energy batteries, please contact us today.

Thank you!

Model Terminal Cell Dimension Diameter ᶲ x Height (mm) Nominal Voltage (V)  Nominal Capacity (Ah)
 1/2 AA Cells
XL-050F  STD, T1 T2, T3  14.5 x 25.1

 3.6 Volts  1.2 Ah
XL-050H  0.85 Ah
XL-055F  1.65 Ah
XLP-055F  AX  1.2 Ah
XL-050F/Case  Plastic Case & Connector  17mm x 28.6mm  1.2 Ah
 AA Cells
XL-060F STD, T1 T2, T3  14.5 x 50.1 3.6  2.6 Ah
XL-060H  1.8 Ah
XLP-060F AX  2.6 Ah
A Cells
XL-100F
STD, T1 T2, T3 ᶲ16.8X50.7 3.6  3.6 Ah
 C Cells
XL-140F
STD, T1, AX ᶲ25.8X50.7 3.6  Discontinued
XL-145F STD, T1, AX ᶲ25.8X50.7 3.6  8.5 Ah
 D Cells
XL-200F STD, T1, AX ᶲ33.4X59.0 3.6  Discontinued
XL-205F STD, T1, AX ᶲ33.4X59.0 3.6  19.0 Ah
XL-210F 3P/3PL ᶲ33.0X6.6 3.6  Discontinued

Major Characteristics of Xeno Energy Li-SOCl2 Batteries

    General Type  Major Features
        + XL-050F
        + XL-055F
        + XL-060F
        + XL-100F
        + XL-145F
        + XL-205F
    Maximum Capacity
    Very Low Self-Discharge
    Applications for Memory Back-Up and Low Currents
    Moderate Voltage Delay (TMV)

    Pulse Type  Major Features
        + XLP-050F
        + XLP-055F
        + XLP-060F
    Maximum Capacity
    Low Self-Discharge
    Applications for Medium Pulse Currents
    Good Improvement of Voltage Delay (TMV)

    High Temperature Type  Major Features
        + XL-050H
        + XL-060H
    Extended High Temperature Range (-55~+130℃)
    Good Safety Design

  High Operating Voltage
      High OCV and CCV level for the design with small space.

  Voltage Stability
      Keep the stable voltage level by the end lifetime.

  Extremely Wide Temperature
      -55~+85℃, Maximum 150℃.
      Good performance at high and low temperature conditions

  Very Low Self-Discharge
      Yearly 1~2% at 20℃.

  Superior Long Shelf Life
      Over 15 years.

  Pulse Discharge Capabilities
      Good pulse capability at low and medium currents.

  Good Safety
      No separate safety circuit for each cell.

  International Standard
      ISO9001:2008, ISO/TS16949:2009, ISO14001:2004, UL, ROHS, ATEX, WEEE
