Description

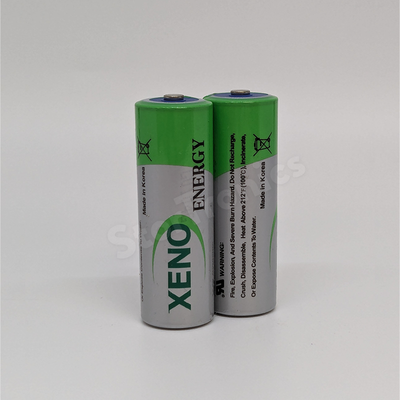

Xeno XL-100F, 3.6 Volt, 3.6Ah "A" Lithium Bobbin Cell
Specifications
| XL-100F Specifications | |
| Cell | A Cell |
| Voltage | 3.6 Volts |
| Capacity | 3600mAh |
| Chemistry | Li-SoCl2 |
| Dimensions | |
| Diameter | 0.67" (16.8mm) |
| Height | 1.99" (50.7mm) |
| Termination | Button top |
Features
| Features | |
| Maximum capacity | |
| Very low self-discharge | |
| Applications for memory back-up and low currents | |
| Moderate voltage delay (TMV) | |
| Applications | |
| Utility meters, AMR and AMI | |
| Toll tags | |
| Memory back-up and real time clock (RTC) | |
| Radio Frequency Identification (RFID) and Real Time Location System (RTLS) tracking | |
| Security systems | |
| Medical equipment | |
| Oceanographic equipment | |
| Military / Aerospace | |
| Information technology | |
Custom Assembly Information
Customized Assemblies
To meet our customers’ requirements, StorTronics provides custom-designed and standardized battery packs.
For your battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Secondary/Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
For your battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Primary/Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
Additional Information
Manufacturers: |
XENO Energy Batteries |
Battery Chemistry: |
Li-SOCl2 |
Battery Voltage: |
3.6 Volts |
Battery Size: |
A |
