Lithium Werks Batteries
LithiumWerks AER32140m2A1 3.2 V, 15 Ah Lithium Iron Phosphate (LiFePO4) Battery
- SKU:
- AER32140m2A1
- MPN:
- AER32140m2A1
- Condition:
- New
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 25 - 99 | and pay only $21.34 each |
| Buy 100 - 999 | and pay only $19.70 each |
| Buy 1000 or above | and pay only $18.29 each |
Shipping will be calculated at checkout
Disclaimer
- The pricing on our website is subject to change without notice.
- Several manufacturers and suppliers are modifying pricing up to the point of shipment.
- We apologize for this inconvenience, but unfortunately this is beyond the control of StorTronics.
Distributor pricing, call (248) 912-1200
Description

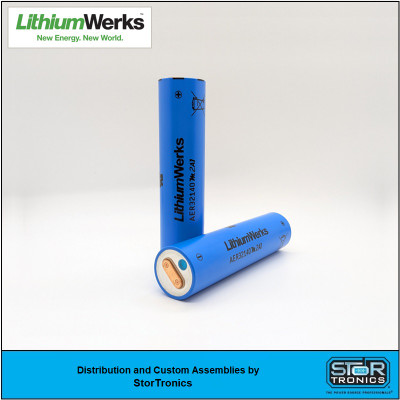

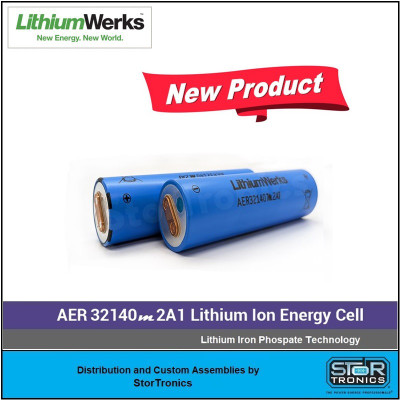

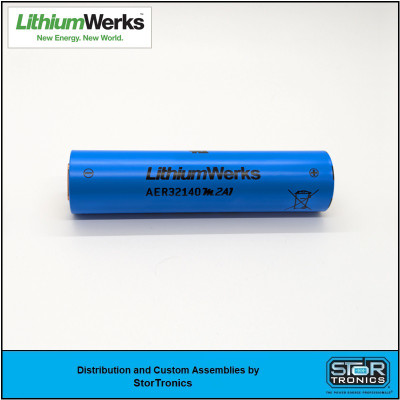

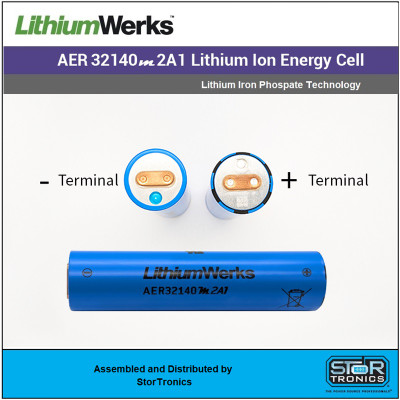

LithiumWerks AER32140m2A1 Lithium Ion Energy Cell,
3.2 Volts, 15Ah, Lithium Iron Phosphate (LiFePO4) Battery
Introducing the LithiumWerks AER32140m2A1, a high-performance 3.2V, 15 Ah Lithium Iron Phosphate (LiFePO4) battery.
This new battery offers exceptional quality and reliability, making it ideal for a wide range of applications.
LiFePO4 batteries are designed for longevity and safety.
StorTronics is a Value Added Assembler for LithiumWerks products.
The AER32140m2A1 cell requires specific assembly equipment, please contact StorTronics for more information.
Specifications
LithiumWerks AER32140m2A1 Specifications
| Part Number: 321400-001 | ||
| Specifications (at 23ºC, unless stated) | ||
| Nominal Ratings | ||
| Voltage | 3.2 V | |
| Capacity @ C/5 Typical | 15.0 Ah | |
| Energy | 48 Wh | |
| Specific Energy | 185 Wh/kg | |
| Energy Density | 396 Wh/L | |
| Impedance (1kHz ACIR) Typ | < 3 mΩ | |
| Cycle Life at 0.5C/0.5C, 80% DOD | > 3,500 cycles | |
| Cycle Life at 0.5C/0.5C, 80% DOD 45ºC | > 2,000 cycles | |
| Discharging | ||
| Max Continuous Discharge Current | 45 A (3C) @ 23ºC to 60ºC | |
| Max Pulse Discharge Current, 10s | 60 A (4C) | |
| Minimum Voltage | 2.0 V | |
| Temperature | -20ºC to 70ºC | |
| Charging | ||
| Recommended Charge Voltage | 3.65 V | |
| Recommended Charge Current | ≤ 7.5 A (C/2) | |
| Fast charge (20-80% SOC) | 30 A (2C) | |
| Charging Profile | CC/CV | |
| Float Voltage | 3.45 V | |
| Temperature | 0ºC to 60ºC | |
| Storage | ||
| Temperature | -20ºC to 70ºC | |
| Mechanical | ||
| Diameter | Ø33.2 +/- 0.2 mm | |
| Length | 140.0 +/- 0.4 mm | |
| Mass | 268 g +/- 2 g | |
| Target Certifications | ||
| Transportation shipped @ ≤ 30% SOC | UN 3480, UN 38.3, BIS Certification | |
| Safety | UL 1973, UL 1642, IEC 62620, IEC 62133 | |
For Volume Pricing email us at sales@stortronics.com or call us today at 248-912-1200.

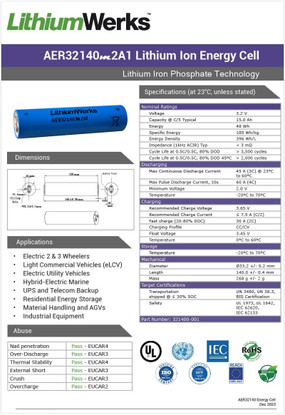

Click Here to download the LithiumWerks AER321402A1 specification sheet
Custom Assembly Information
Customized Assemblies
StorTronics is your reliable and experienced partner to design and produce your custom battery pack. These are a few reasons why we believe you should choose us for your battery pack needs:
Expertise and Experience: Our team of design engineers, product development and production team collectively has over 50 years of experience designing and producing custom battery packs for a wide range of applications. We have the expertise to work with you to develop a battery pack that meets your specific needs, whether you need high power density, long cycle life, or specialized environmental durability.
Customized Solutions: We understand that every customer has unique requirements and specifications for their battery pack. That's why we offer fully customized solutions that are tailored to your specific needs. We work closely with you throughout the design and production process to ensure that the final product meets your expectations.
High-Quality Components: We use only the highest quality components in our battery packs, including top-of-the-line cells, connectors, and electronic components. We source our components from trusted suppliers to ensure that your battery pack is reliable and durable.
Rigorous Testing and Quality Control: We subject all of our battery packs to rigorous testing and quality control procedures to ensure that they meet the highest standards of performance and reliability. We use advanced testing equipment and procedures to ensure that your battery pack is up to the task.
Competitive Pricing: Despite offering customized solutions and high-quality components, we are committed to providing competitive pricing to our customers. We work closely with you to understand your budget and provide a cost-effective solution that meets your needs.
So, if you're looking for a reliable and experienced partner to design and produce your custom battery pack, StorTronics is the choice for your customized battery pack solution!
PLEASE NOTE THESE EXPEDITED SHIPPING RULES FOR LITHIUM BATTERIES
* StorTronics is certified to ship Lithium Batteries, all Lithium products shipped using an Expedited Service (Overnight, 2nd Day &
3 Day Shipments) will be shipped ONLY using Federal Express. There will be no exceptions!
* All Lithium batteries or battery packs are classified as a Hazardous Material and will be subject to an additional "Hazardous
Shipping Fee" (HAZMAT Fee).
* The total shipping charges indicated in your shopping cart may need to be adjusted after you have submitted your order.
* A HAZMAT fee will be charged for All Expedited shipments.
* A Handling Fee will be charged when using a customers FedEx account, this fee will be determined after you have placed
your order.
* A representative will contact you with the adjusted charges for your shipment.
