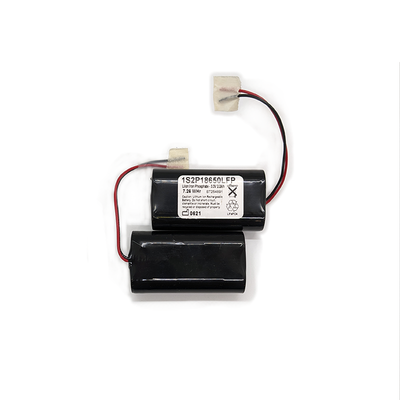

StorTronics 18650 LiFePo4 1S2P, 3.3V 2.2Ah Custom Battery Pack w/PCM
- SKU:
- ST254891
- MPN:
- ST254891
- Condition:
- New
Disclaimer
- The pricing on our website is subject to change without notice.
- Several manufacturers and suppliers are modifying pricing up to the point of shipment.
- We apologize for this inconvenience, but unfortunately this is beyond the control of StorTronics.
Distributor pricing, call (248) 912-1200
Description
StorTronics Stock Lithium Iron Phosphate (LiFePO4) Custom Battery Pack
1S2P 18650 LFP, 3.3 Volt, 2.2Ah 18650 LiFePO4 1S2P w/PCM
Specifications
| Technical Specifications | |
| Part No. | ST-1S2P 18650 LFP |
| Voltage Range | 3.0 V to 4.2 V |
| Nominal Voltage | 3.3 Volts |
| Capacity | 2.4 Ah @ C-rate |
| Min Capacity | 2.4 Ah @ C-rate |
| Max. Continuous Discharge | 2.4A |
| Max. Pulse Current | 4.0A < 1sec |
| Energy | 7.29Wh |
| Energy Density | 72.9Wh/kg |
| Internal Resistance | < 120m Ohm |
| Size | 72mm x 37mm x 21mm |
| Weight | ~ 100g |
| Cycle Life | > 2000, with capacity retention > 70% |
| Memory | No Memory Effect |
| Operating Temperature | 0oC to +60oC / -30oC to +60oC |
| Exterior/Housing | PVC |
| Terminals/Connector | 22 AWG Length 70mm, Red+, Black- |
| Optional Harness w/Connector | |
| Transportation | UN 38.3 Certified |
| Protection Circuit Module | Over charge and over discharge protection |
| Charge Voltage | 4.15 - 4.20 V |
| Charging Current | < 2.4A |
| Notes | ● Do not combine the battery in series or in parallel. |
| ● Do not reverse polarity charging. Do not connect the | |
| battery electrodes to an electrical outlet. | |
| ● Do not transport or store the battery together with | |
| metal objects such as hairpins, necklaces, etc. | |
| ● Do not strike, trample, throw, fall and shock the battery. | |
| ● Do not directly weld the battery and pierce the battery | |
| with a nail or other sharp objects. | |
| ● Do not use the battery in the location where static | |
| electricity and magnetic field is strong. Otherwise the | |
| battery protection circuit may be damaged. | |
Features
StorTronics Custom Assemblies
ST-1S2P 18650 LFP
Features
· Off-the-Shelf Solution
· Wire or Connector Terminals
· Full Circuit Protection
· Meets all UN Transportation Requirements
· Long Cycle Life
· High Energy Density
· Wide Operating Temperature Range
· Lightweight
· No Memory Effect
Applications
· Portable electronics
· Hand-held devices
· Medical Equipment
· Back-up Power
Custom Assembly Information
Customized Assemblies
StorTronics is your reliable and experienced partner to design and produce your custom battery pack. These are a few reasons why we believe you should choose us for your battery pack needs:
Expertise and Experience: Our team of design engineers, product development and production team collectively has over 50 years of experience designing and producing custom battery packs for a wide range of applications. We have the expertise to work with you to develop a battery pack that meets your specific needs, whether you need high power density, long cycle life, or specialized environmental durability.
Customized Solutions: We understand that every customer has unique requirements and specifications for their battery pack. That's why we offer fully customized solutions that are tailored to your specific needs. We work closely with you throughout the design and production process to ensure that the final product meets your expectations.
High-Quality Components: We use only the highest quality components in our battery packs, including top-of-the-line cells, connectors, and electronic components. We source our components from trusted suppliers to ensure that your battery pack is reliable and durable.
Rigorous Testing and Quality Control: We subject all of our battery packs to rigorous testing and quality control procedures to ensure that they meet the highest standards of performance and reliability. We use advanced testing equipment and procedures to ensure that your battery pack is up to the task.
Competitive Pricing: Despite offering customized solutions and high-quality components, we are committed to providing competitive pricing to our customers. We work closely with you to understand your budget and provide a cost-effective solution that meets your needs.
So, if you're looking for a reliable and experienced partner to design and produce your custom battery pack, StorTronics is the choice for your customized battery pack solution!
