Description
PowerSonic PS-6120 FP
6 Volt, 12 Ah SLA Battery w/FP Terminals

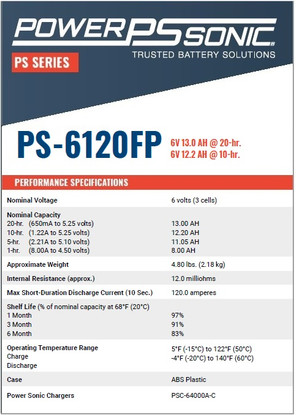

Specifications
| Performance Specifications | |
| Nominal Voltage: | 6 volts (3 cells) |
| Nominal Capacity | |
| 20-hr. (650mA to 5.25 volts): | 13.00 AH |
| 10-hr. (1.22A to 5.25 volts): | 12.20 AH |
| 5-hr. (2.21A to 5.10 volts): | 11.05 AH |
| 1-hr. (8A to 4.50 volts): | 8.00 AH |
| 15-min. (25.5A to 4.50 volts): | 6.38 AH |
| Terminals: | See Notes below |
| Approximate Weight: | 4.80 lbs. (2.18 kg) |
| Energy Density (20-hr. rate): | 1.18 W-h/in3 (72.20 W-h/l) |
| Specific Energy (20-hr. rate): | 16.25 W-h/lb (35.83 W-h/kg) |
| Internal Resistance (approx.): | 12 milliohms |
| Max Discharge Current (7 Min.): | 36.0 amperes |
| Max Short-Duration Discharge Current (10 Sec.): | 120.0 amperes |
| Shelf Life (% of nominal capacity at 68°F (20°C)) | |
| 1 Month: | 97% |
| 3 Months: | 91% |
| 6 Months: | 83% |
| Operating Temperature Range | |
| Charge: | -4°F (-20°C) to 122°F (50°C) |
| Discharge: | -40°F (-40°C) to 140°F (60°C) |
| Case: | ABS Plastic |
| Power-Sonic Chargers: |
PSC-61000A, 61000A-C |
Terminal Notes:
FP - FASTON Polarized
Positive: F2 - Quick disconnect tabs, 0.250” x 0.032”
- Mate with AMP. INC. FASTON “250” series
Negative: F1 - Quick disconnect tabs, 0.187” x 0.032”
- Mate with AMP. INC. FASTON “187” series
Features
PS SERIES
Rechargeable Sealed Lead Acid Batteries
FEATURES
• General purpose VRLA battery
• Absorbent Glass Mat (AGM) technology for superior performance
• Power and volume ratio yielding unrivalled energy density
• VdS approved models
• Valve regulated, maintenance free spill proof construction
• Rugged impact resistant ABS case and cover flame retardant to UL94:HB and UL94:V0
• Low discharge rate for long shelf life
