Description

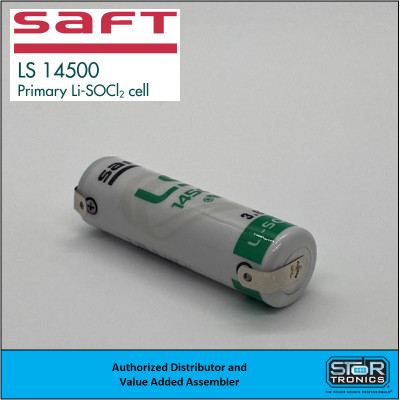

Saft LS14500 ST, 3.6 VOLT, 2.6Ah "AA" Cell
Lithium Thionyl Chloride (Li-SOCl2) Battery w/Solder Tabs
See "Details"
Specifications
Saft LS14500 Specifications
| Manufacturer: | Saft |
| Mfg PN: | 700060 |
| NSN: | 6135-01-301-8776 |
| Chemistry: | Lithium Thionyl Chloride |
| Voltage: | 3.6 Volts |
| Capacity: | 2600 mAh |
| Contacts: | Solder Tabs |
| Dimensions | |
| Height (max): | 50.3 mm (1.98 in) |
| Diameter (max): | 14.55 mm (0.57 in) |
| Li metal content (approx): | 0.7 g |
| Warranty: | DOA |
Click Here to download the Saft LS14500 specification sheet
Details
Tabbing Options for the LS14500 cells
Features
Saft Li-SOCl2 Product Range
High energy, high voltage, high pulse capability, long life, wide temperature range.
| • | Lowest self-discharge for extended operating life |
| • | Well controlled passivation |
| • | Operating temperature: |
| - 60°C to + 150°C | |
| • | The LS cell product range has been independently assessed and tested to the relevant parts of IEC 60079-0 and IEC 60079-11 in the IECEx system. |
| • | This allows them to be considered for applications in hazardous locations and potentially explosive atmospheres. |
| • | Non-flammable electrolyte |
| • | Excellent resistance to corrosion |
| • | Low magnetic signature |
| • | Bobbin LS cells are designed specifically for long term applications (5 to 20+ years), featuring a few μA base currents and periodic pulses, typically in the 5-150 mA range. |
| • | Spiral LSH cells are designed for long term applications (2 to 10+ years), featuring low background currents and periodic pulses (typically in the 50 mA to 2 A range) and for applications requiring continuous currents from 0.1 A to 1.8 A. |
Main applications
Radio communication and other military applications
Alarms and security systems
Beacons and emergency location transmitters
GPS
Metering systems
Sonobuoys
Automotive telematics
Pipeline inspection
Custom Assembllies
Customized Assemblies
To design your next custom battery using the Saft LS14500 ST cells,
Contact our Design Engineering team at (248) 912-1200.
