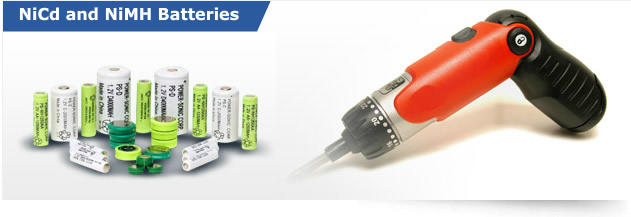

Power Sonic NiCd & NiMH Batteries

Scroll down to the respective Spec Sheet: NiCd Batteries | NiMH Batteries

Features:
  • A broad range of cell sizes and types with capacities ranging from 60-8000mAh.
  • Exceptional performance achieved through state of the art design and a meticulously controlled manufacturing process.
  • The cells are rugged durable and safe. The cylindrical steel case and special construction methods result in extremely impact and vibration resistant batteries.
  • A long service life of 500-1,000 charge/discharge cycles can be achieved depending on the average depth of discharge, and five years or more of trouble-free operation when used in stand-by (trickle charge) service at room temperature.
  • The batteries have a wide operating temperature range from -4°F (-20°C) to 140°F (60°C) for regular cells and -40°F (-40°C) to 158°F (70°C) for Hi-Temp cells. For charging the allowable temperature range is 32°F (0°C) to 122°F (50°C)
  • Uniformity of cells is achieved through a quality control process which electronically screens cells as to capacity and impedance.
  • Power-Sonic nickel-cadmium and nickel-metal hydride batteries are also available as cell assemblies and packs. Both cylindrical and button cells may be packaged in any configuration to meet electrical and dimensional requirements.

Nickel Cadmium Batteries

* Quick or rapid charge only with negative delta voltage cutoff. Refer to individual specification sheets for details.

Download Excel summary sheet of NiCd Batteries

Standard Cells

Model
Cell Size
Top Type
Voltage
Capacity
Standard Charge
Quick Charge
Diameter
Height
Weight
Spec Sheet
V
mA
mA
hrs
mA
hrs
inch
mm
inch
mm
g
PS-AAA
AAA
Button
1.2
300
30
14
300
1.2*
0.40
10.1
1.72
43.6
10
PS-2/3AA
2/3AA
Flat
1.2
300
30
14
300
1.2*
0.56
14.1
1.10
28.0
12
PS-AA
AA
Flat
1.2
600
60
15
600
1.2*
0.56
14.1
1.89
48.0
21
PS-AAL
AA
Button
1.2
600
60
14
600
1.2*
0.56
14.1
1.95
49.5
18
PS-AAX
AA
Flat
1.2
700
70
15
700
1.2*
0.56
14.1
1.89
48.0
22
PS-850AA
AA
Flat
1.2
850
85
16
425
2.4*
0.56
14.1
1.89
48.0
23
PS-850AAL
AA
Button
1.2
850
85
16
425
2.4*
0.56
14.1
1.95
49.5
23
PS-2/3A
2/3A
Flat
1.2
600
60
14
600
1.2*
0.64
16.3
1.08
27.4
15.5
PS-4/5A
4/5A
Flat
1.2
1000
100
15
1000
1.2*
0.66
16.8
1.66
42.1
30
PS-A
A
Flat
1.2
1400
140
15
700
2.4*
0.66
16.8
1.93
49.0
31 gms.
PS-SC
SC
Flat
1.2
1500
150
15
1500
1.2*
0.87
22.1
1.65
42.0
44
PS-C
C
Flat
1.2
2000
200
15
2000
1.2*
1.00
25.3
1.93
49.0
68
PS-CX
C
Flat
1.2
2500
250
14
1250
2.4*
1.00
25.3
1.93
49.0
64
PS-1/2D
1/2D
Flat
1.2
2400
250
14
1250
2.4*
1.26
32.1
1.38
35.0
71
PS-D
D
Flat
1.2
4000
400
15
2000
2.4*
1.26
32.5
2.32
59.5
113
PS-DL
D
Flat
1.2
4000
400
14
2000
2.4*
1.26
32.1
2.38
60.5
120
PS-DX
D
Flat
1.2
5000
500
15
2500
2.4*
1.27
32.2
2.32
59.0
138
PS-F
F
Flat
1.2
7000
700
14
3500
2.4*
1.26
32.1
3.50
89.0
179

High Temperature Cells (H-Type)

Model
Cell SizeTop TypeVoltageCapacityStandard ChargeQuick ChargeDiameterHeightWeightSpec Sheet
VmAmAhrsmAhrsinchmminchmmg
PS-1/3AAH
 1/3AA Flat 1.2 110 11 16 n/a n/a 0.56 14.1 0.67 17.0 7
PS-AAH
 AA Flat 1.2 700 70 14 n/a n/a 0.56 14.1 1.89 48.0 22
PS-SCH
 SC Flat 1.2 1500 150 15 n/a n/a 0.87 22.1 1.65 42.0 41
PS-CH
 C Flat 1.2 2200 220 16 n/a n/a 1.00 25.3 1.93 49.0 68
PS-DH
 D Flat 1.2 4000 400 14 n/a n/a 1.27 32.2 2.32 59.0 138

High Capacity Rapid Charge Cells

Model
Cell Size
Top Type
Voltage
Capacity
Standard Charge
Quick Charge
Diameter
Height
Weight
Spec Sheet
V
mA
mA
hrs
mA
hrs
inch
mm
inch
mm
g
PS-AAXF
AA
Flat
1.2
700
70
15
700
1.2*
0.56
14.1
1.93
49.0
22
PS-SCXF
SC
Flat
1.2
1800
180
15
1800
1.2*
0.87
22.1
1.65
42.0
46
PS-CXF
C
Flat
1.2
2500
250
15
2500
2.4*
1.00
25.3
1.93
49.0
68
PS-DF
D
Flat
1.2
4500
450
15
4500
2.4*
1.27
32.2
2.32
59.0
135
PS-DXF
D
Flat
1.2
5000
500
16
1000
2.4*
1.27
32.2
2.32
59.0
138

PCBM (Printed Circuit Board Mount) Memory Save Cells

Model
Cell Size
Top Type
Voltage
Capacity
Standard Charge
Quick Charge
Diameter
Height
Weight
Spec Sheet
V
mA
mA
hrs
mA
hrs
inch
mm
inch
mm
g
PCBM-2.4
1/3AA/3
P.C.PINS
2.4
110
4
48

0.57
14.5
1.35
34.5
15
PCBM-3.6
1/3AA/3
P.C.PINS
3.6
110
11
16

0.57
14.5
2.05
52
21

NICKEL-METAL HYDRIDE BATTERIES

* Quick or rapid charge only with negative delta voltage cutoff. Refer to individual specification sheets for details.

Download Excel summary sheet of NiMH Batteries

Cylindrical Cells

Model
Cell Size
Top Type
Voltage
Capacity
Standard Charge
Rapid Charge
Diameter
Height
Weight
Spec Sheet
V
mA
mA
hrs
mA
hrs
inch
mm
inch
mm
g
NH-600AAA
AAA
FLAT
1.2V
600
60
14
600
1.2*
0.40
10.1
172
43.6
12
NH-1250AA
AA
FLAT
1.2V
1250
125
16
1250
1.2*
0.56
14.1
1.89
48.0
23
NH-1250AAL
AA
BUTTON
1.2V
1250
125
16
1250
1.2*
0.56
14.1
1.95
49.5
23
NH-1500AA
AA
FLAT
1.2V
1500
150
16
1500
1.2*
0.57
14.6
1.99
50.5
25
NH-1500AAL
AA
BUTTON
1.2V
1500
150
16
1500
1.2*
0.56
14.1
1.95
49.5
23
NH-1600A
4/5A
FLAT
1.2V
1600
160
16
800
2.4*
0.66
16.8
1.66
42.1
33
NH-2000AA
AA
FLAT
1.2V
2000
200
16
1000
2.4*
0.56
14.1
1.89
48.0
29
NH-2200A
4/5A
FLAT
1.2V
2200
220
16
1100
2.4*
0.66
16.8
1.66
42.1
38
NH-3500A
4/3A
FLAT
1.2V
3500
350
14
1750
2.4*
0.65
16.6
2.60
66
51
NH-3000SC
SC
FLAT
1.2V
3000
300
16
1500
2.4*
0.87
22.1
1.65
42.0
59
NH-7000D
D
FLAT
1.2V
7000
700
14
3500
2.4*
1.27
32.2
2.32
59.0
153
NH-8000D
D
FLAT
1.2V
8000
800
15
4000
2.4*
1.27
32.2
2.32
59.0
160

Button Cells

Model
Cell Size
Top Type
Voltage
Capacity
Standard Charge
Rapid Charge
Diameter
Height
Weight
Spec Sheet
V
mA
mA
hrs
mA
hrs
inch
mm
inch
mm
g
NH-B80

BUTTON
1.2V
80
8
15
n/a
n/a
0.67
15.4
0.25
6.3
3.5
NH-B320

BUTTON
1.2V
320
32
15
n/a
n/a
0.98
25.0
0.30
7.6
14.5
NH-TR7
9v Size
SNAP ON
8.4V
150
15
15
n/a
n/a
n/a
n/a
0.61
15.5
42
