Description

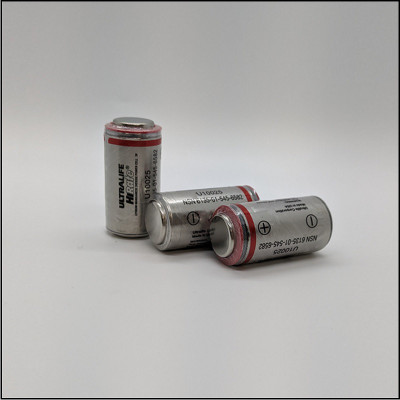

Ultralife U10025 3 Volt 4.8Ah "C" Cell LiMnO2 Lithium Battery

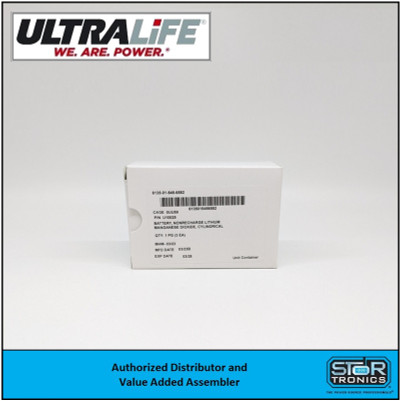

This product is sold in quantities of 3, note that when you purchase 1 unit you will receive 3 U10025 cells
Note:
The U10025 replaces the U2550HCES-F95 and is the only cell approved for use in the MIDS-LVT.
For this application all 3 cells MUST be replaced at the same time.

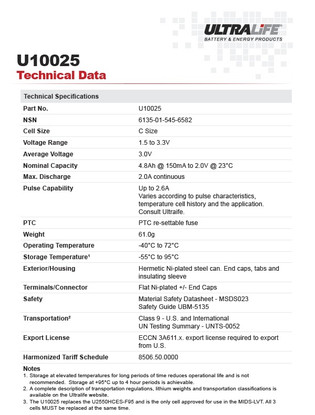

Technical Specifications
Ultralife U10025 Technical Specifications |
|
Part No. | U10025 |
NSN | 6135-01-545-6582 |
Cell Size | C Size |
Voltage Range | 1.5 to 3.3V |
Average Voltage | 3.0V |
Nominal Capacity | 4.8Ah @ 150mA to 2.0V @ 23°C |
Max. Discharge | 2.0A continuous |
Pulse Capability | Up to 2.6A Varies according to pulse characteristics, temperature cell history and the application. Consult Ultralife. |
PTC | PTC re-settable fuse (Positive Temperature Coefficient) |
Weight | 61.0g |
Operating Temperature | -40°C to 72°C |
Storage Temperature (1) | -55°C to 95°C |
Exterior/Housing | Hermetic Ni-plated steel can. End caps, tabs and insulating sleeve |
Terminals/Connector | Flat Ni-plated +/- End Caps |
Safety | Material Safety Datasheet - MSDS023 Safety Guide UBM-5135 |
Transportation (2) | Class 9 - U.S. and International UN Testing Summary - UNTS-0052 |
Export License | ECCN 3A611.x. export license required to export from U.S. |
Harmonized Tariff Schedule | 8506.50.0000 |
Notes | |
(1) Storage at elevated temperatures for long periods of time reduces operational life and is not recommended. Storage at +95°C up to 4 hour periods is achievable. |
|
(2) A complete description of transportation regulations, lithium weights and transportation classifications is available on the Ultralife website. |
|
(3) The U10025 replaces the U2550HCES-F95 and is the only cell approved for use in the MIDS-LVT. All 3 cells MUST be replaced at the same time. |
Features
Features
- High energy density
- No voltage delay
- Wide operating temperature range
- Lightweight
- Up to 10-year shelf life
- Long operating life
- Re-settable fuse
- Safety shutdown separator
- Cell is hermetically sealed Ni-plated steel can
Applications
Applications
• Military, MIDS-LVT
Note:
The U10025 replaces the U2550HCES-F95 and is the only cell approved for use in the MIDS-LVT.
