Description

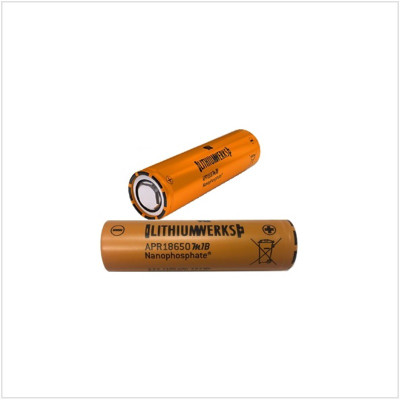

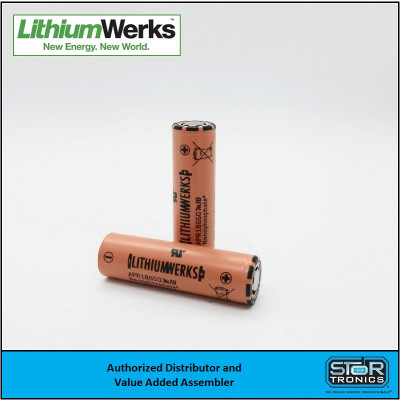

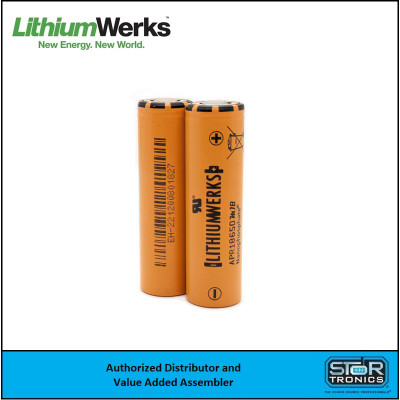

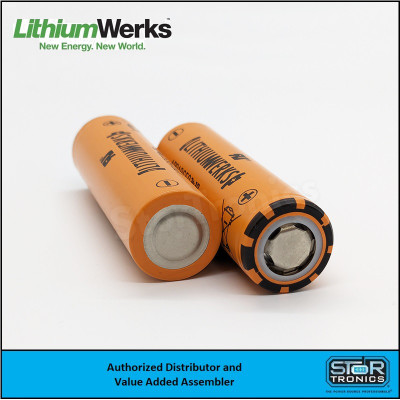

LithiumWerks APR18650M1-B, 3.3 Volt, 1.2 Ah Lithium Iron Phosphate (LiFePO4)
The LithiumWerks APR18650M1-B is a high-performance 3.3V, 1.2Ah LiFePO4 cell featuring advanced Nanophosphate® technology for exceptional power, fast charging, and long cycle life. Its inherently safe chemistry delivers outstanding thermal stability, reliable output, and minimal capacity fade—ideal for power, pulse, and long-term standby applications. With multi-layer safety protection and proven durability, this cell is a trusted solution for demanding industrial, medical, aerospace, and backup power systems.
APR18650m1-B Power Cell Specifications
Nominal Ratings
Voltage: 3.3 V
Capacity @ 23 ºC Typical (Min): 1.2 Ah (1.15 Ah)
Energy @ 23 ºC: 3.96 Wh
Impedance (1kHz AC): <16 mΩ
Cycle Life at 1C/1C, 100% DOD: > 4000 cycles
Discharging
Max Continuous Discharge Current: 30 A (25C rate)
Max Pulse Discharge Current (10s): 50 A (42C rate)
Minimum Voltage / HPPC Pulse: 2 V / 1.6 V
Temperature: -30 ºC to 60 ºC
Charging
Recommended Charge Current: 1.5 A (1C rate)
Max Continuous Charge Current: 4 A (3C rate)
Max Pulse Charge Current (10s): 10 A (8C rate)
Recommended Charge Voltage: 3.6 V
Terminate Charge @ 3.6 V: < 50 mA
HPPC Pulse Voltage: 3.8 V
Float Voltage: 3.5 V
Temperature Range
(Charging current at <40mA when under 0 ºC for some applications): 0 ºC to 60 ºC
Storage
Storage Temperature: -40 ºC to 70 ºC
Mechanical
Diameter: Ø18.5 +/- 0.1 mm
Length: 64.95 +/- 0.2 mm
Mass: 41.5 +/- 1.0 g:
Certifications
Transportation: UN 3480 (UN38.3), CIQ
Safety: UL 1642, IEC 62133-2
Quality System: ISO-9001, TS-16949, IATF-16949
Environmental: ISO-14001, REACH, RoHS
Transportation
Shipped: @ 30% SOC
Part Number 300949-001
