Description

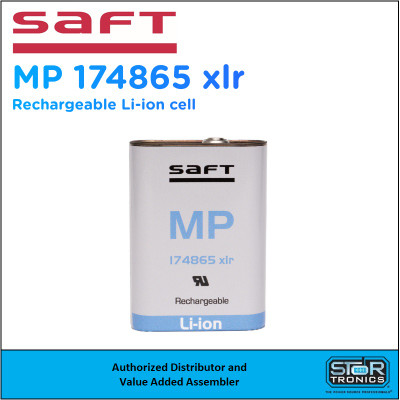

Saft MP 174865XLR, 3.65 Volt, 5.3Ah Prismatic Rechargeable Lithium-Ion Cell
Saft # 38174-865-0113
MP 174865 XLR Specifications
Saft MP 174865 XLR – High-Energy Li-ion Cell
Key Specifications:
Nominal Voltage: 3.65 V
Typical Capacity: 5.3 Ah (at C/5 rate, +25°C, 2.5V cut-off)
Nominal Energy: 19.3 Wh
Max Discharge Current: 10.0 A continuous, 21.0 A pulse
Charging Voltage: 4.2 ± 0.05 V
Max Charge Current: 5.0 A (1C rate)
Dimensions & Weight (sleeved cell):
Thickness: 19.0 mm
Width: 48.0 mm
Height: 65.0 mm (including terminals)
Weight: ~121 g
Volume: 0.052 L
Operating Temperature:
Charge: –30°C to +60°C
Discharge: –35°C to +60°C
Storage Recommended: +10°C to +30°C
Storage Allowable: –40°C to +60°C
MP 174865 XLR Features
Key Features:
- High energy density: 371 Wh/L, 159 Wh/kg
- Long cycle life: >950 cycles at 100% DoD (C/2 rate)
- Stainless steel casing, hermetically sealed
- Maintenance-free, no memory effect
- RoHS & REACH compliant, UL 1642 & IEC62133 certified
- ISO 9001, ISO 14001, ISO 13485 certified
- Made in the EU
Applications:
- Medical devices
- Industrial & military equipment
- Oil & gas
- Wireless sensor networks
- IoT devices
- Tracking systems
Manufactured in the EU. Available for purchase at StorTronics.com
Custom Battery Packs
Customized Battery Packs
To design your next custom battery using the Saft MP 174865 XLR cells,
Contact our Design Engineering team at (248) 912-1200.
To meet customers’ requirements, StorTronics provides custom-designed and standardized battery packs.
As a trusted custom battery pack assembler, StorTronics focuses on working directly with your team to develop custom Secondary (rechargeable) and Primary battery packs that are safe, reliable, and exceed all of your quality expectations.
Our expert Design Engineers, Product Design and Operations staff have the knowledge and resources to design a custom battery pack that is as unique as the product that it’s powering.
If you have a smart or standard battery design issue that you would like to discuss, contact us at (248) 912-1200 or download our Battery Pack Design form and submit it to for our review.
For your Primary (Non-Rechargeable) battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Primary/Non-Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
For your Secondary (Rechargeable) battery design and system needs, please contact our engineering staff at (248) 912-1200 or download our Custom Secondary/Rechargeable Battery Pack Design Form and send it to sales@stortronics.com
